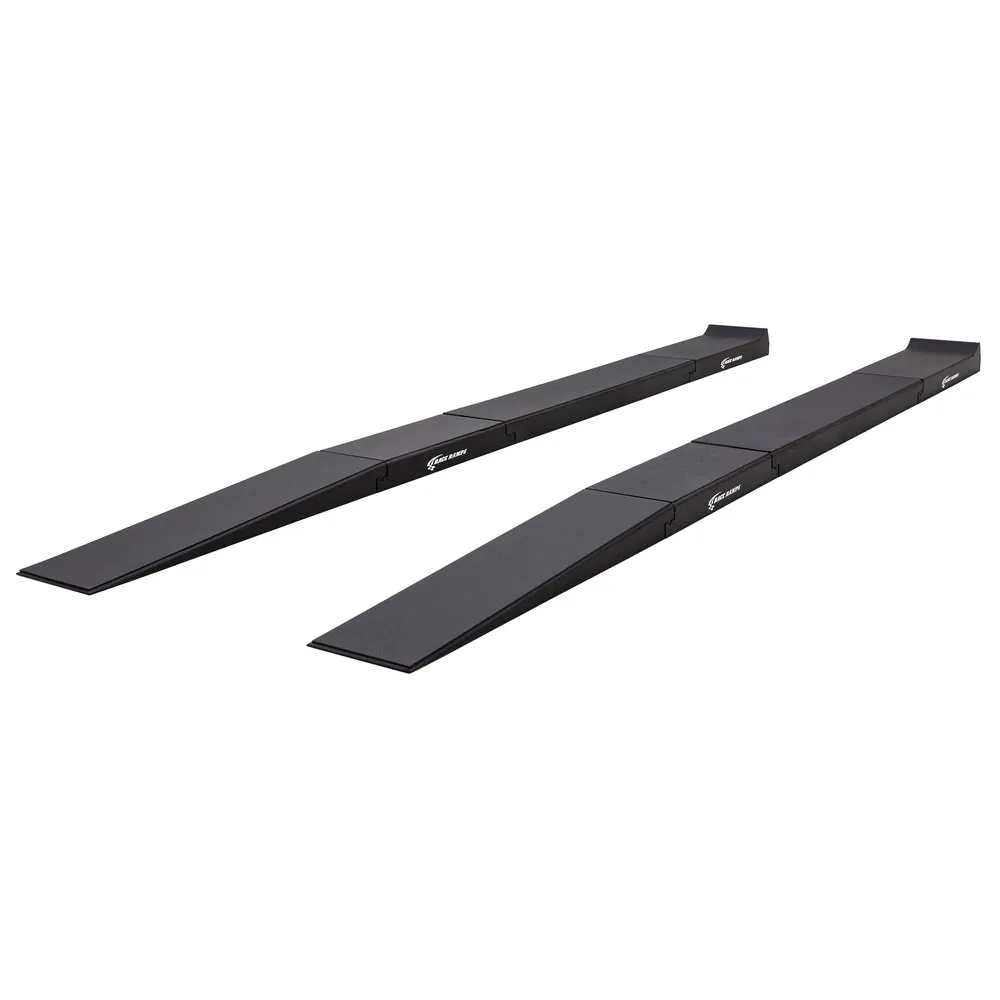

4" H Car Lift Ramps – 7 Degree Angle of Approach
Key Features:
- Designed to help low-profile cars with up to 12" W tires on scissor and 2-post lifts
- Each side can support up to 3,000 lbs. for a total vehicle weight of 6,000 lbs.
- Four interlocking pieces per ramp accommodate wheelbases from 80" to 115"
There’s nothing as frustrating as trying to work on a car only to realize that it won’t fit on your shop or home lift! Luckily, these 4-inch Car Lift Ramps make it easier than ever to get that low vehicle up on a scissor or 2-post lift.

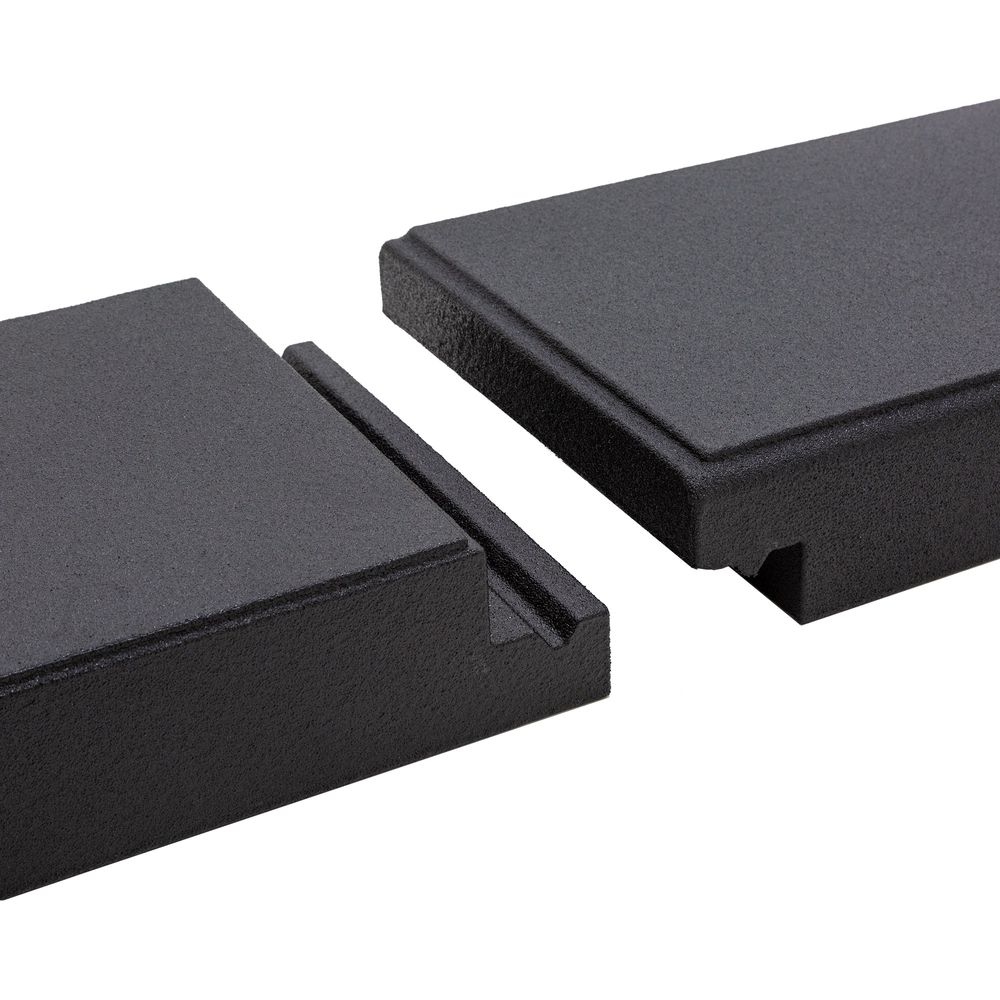

They come as a pair; each ramp weighs about 40 pounds total and is compromised of four interlocking pieces. Each side can hold up to 3,000 pounds for a total vehicle weight capacity of 6,000 pounds. Featuring a nice, easy 7 degree angle of approach, they are sloped enough to accommodate the majority of lowered and low profile vehicles. The 158-inch length supports wheelbases from 80 inches to 115 inches long, and the 14-inch width is perfect for tires up to 12 inches wide.
These lift ramps are manufactured using an exclusive, patented process. They are constructed of 100% solid, high-density foam with a rugged anti-slip coating that results in a lightweight ramp solution that is strong, yet durable. They won’t slide on any surface, including garage and workshop floors.
- Designed to help low-profile cars with up to 12" W tires on scissor and 2-post lifts
- Each side can support up to 3,000 lbs. for a total vehicle weight of 6,000 lbs.
- Four interlocking pieces per ramp accommodate wheelbases from 80" to 115"
Use the calculator below to determine your vehicle's maximum angle of approach. Then shop for any Race Ramps with an angle equal to or less than your result.
To determine the best angle of approach for your vehicle, we have devised the “yardstick test” below. If you do not have a yardstick, carefully measure out 36" with a tape measure or other straight, rigid object.
You may need two sets of hands to get an accurate measurement.
Place a 36" yardstick or tape measure at the base of your front wheel.
Raise up the yardstick or tape measure until it hits the underside of your car (the spoiler/splitter/air dam).
Measure vertically from the ground to the end of the yardstick or 36" point on the tape measure.
