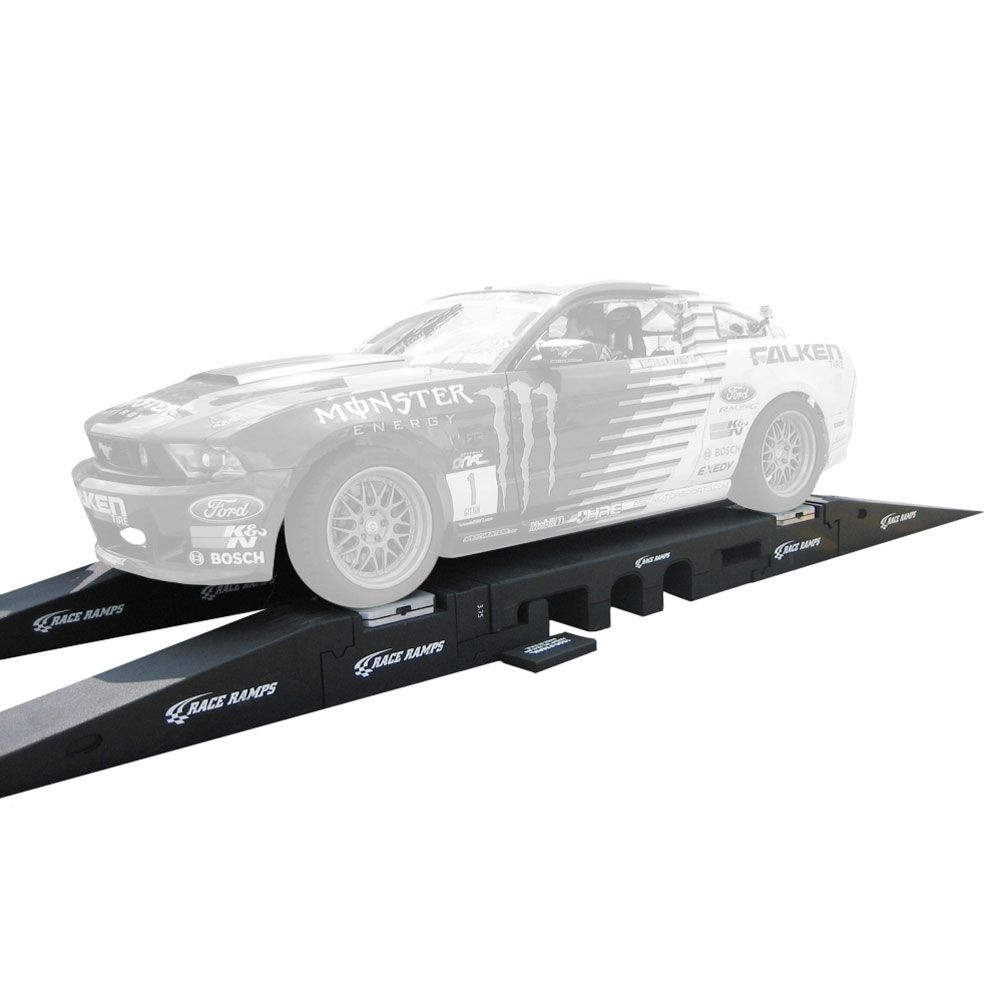

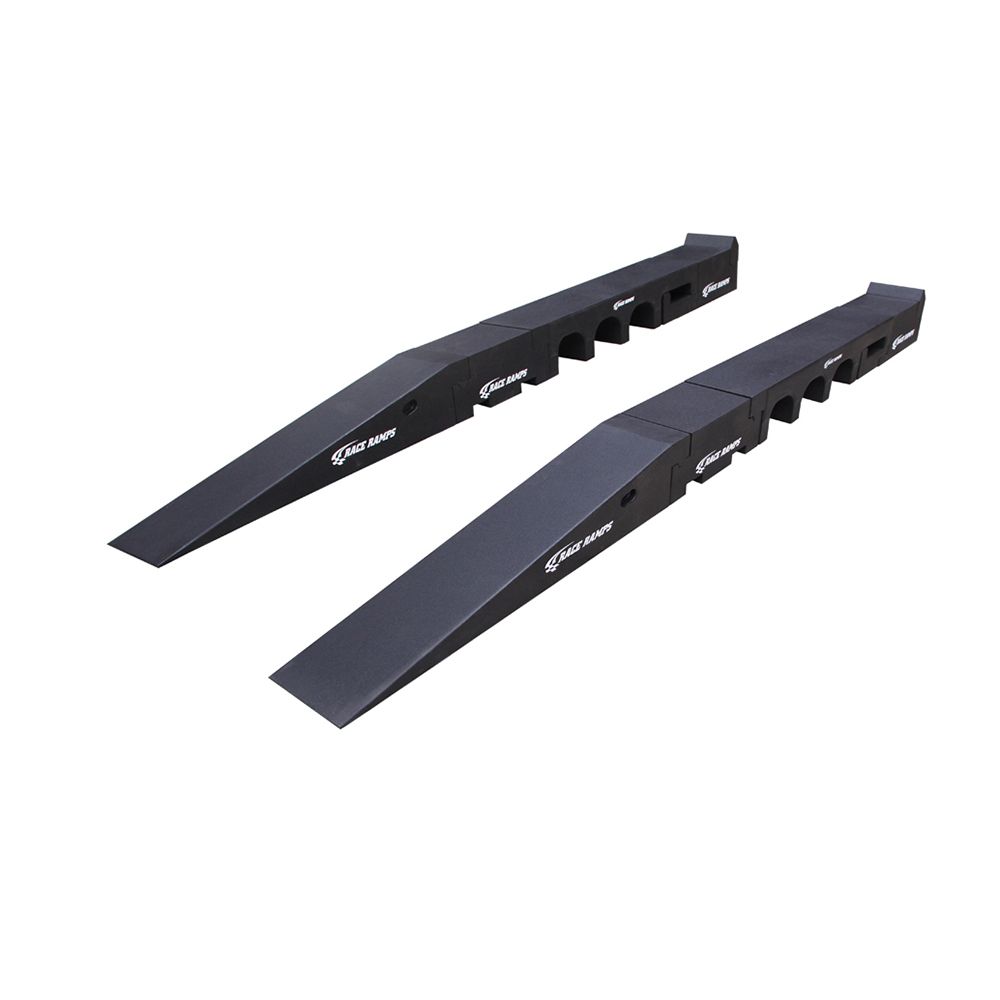

Portable Pit Stop Ramps – Racer Model with Scale Cutouts

$3,557.00
Select Description
ITEM #RR-PPS-R
Made to Order, 6-8 Week Lead Time

Key Features:

  • Lift vehicle 14" for easy maintenance and spectacular display
  • 90" to 115" adjustable wheelbase; 15" cutouts make ramps easier to move
  • Modular design is easy to transport and store

See More…

Technology & Features
Tire Width
Tire Width
14" maximum width
Angle of Approach
Angle of Approach
10 degrees
Weight Capacity
Weight Capacity
1500 lbs. per ramp
Sold in Pairs
Sold in Pairs
2 ramps included
100% SOLID
100% SOLID
Exclusive high-density foam
Anti Slip/Skid
Anti Slip/Skid
stays put on any surface
Portable Pit Stop Ramps – Racer Model with Scale Cutouts
30 Day Guarantee
Satisfaction or money back
Portable Pit Stop Ramps – Racer Model with Scale Cutouts
Made in USA
and proud of it
Specifications
Made in the USA
Sold As:
Pair
Length:
220"
Width:
16"
Height:
14"
Weight:
250 lbs.
Lift Height:
14"
Maximum Capacity:
6,000 lbs.
Maximum Tire Width:
14"
Approach Angle Degree:
10.4°
Material:
Expanded foam with traction coating
Cutout Size:
15"
Color:
Black
More Information

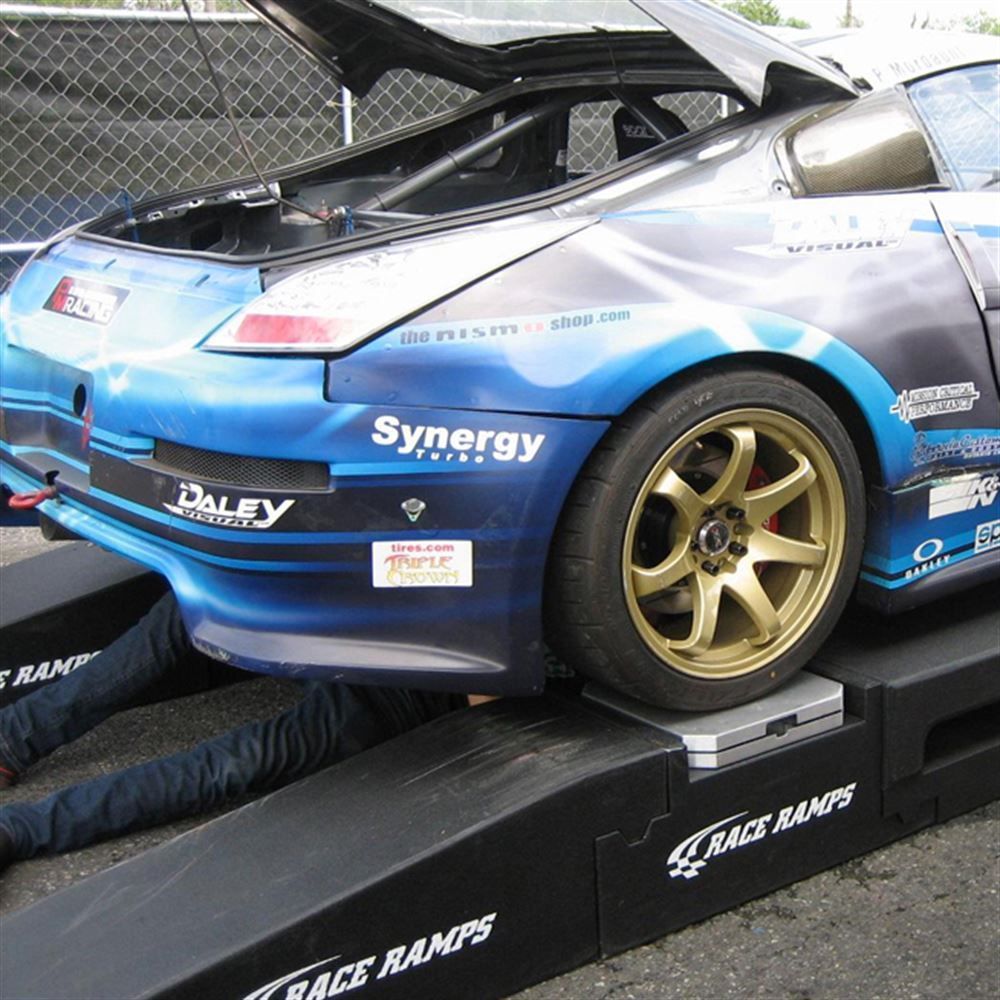

Great for wrapping or simple maintenance, Portable Pit Stop Ramps elevate vehicles for better body height and safer underbody access. They’re light enough to bring with you to the track, keep on hand in your personal garage, or simply leave out in your workshop for everyday use.

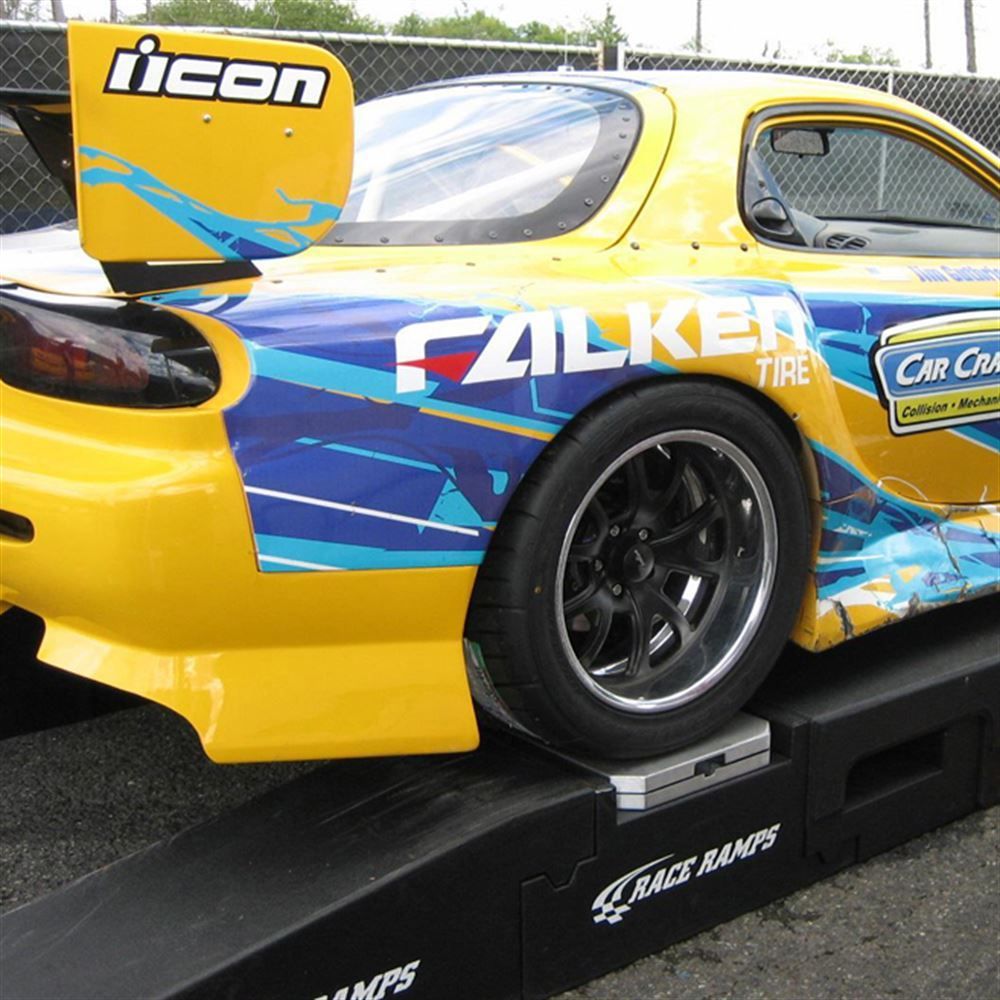

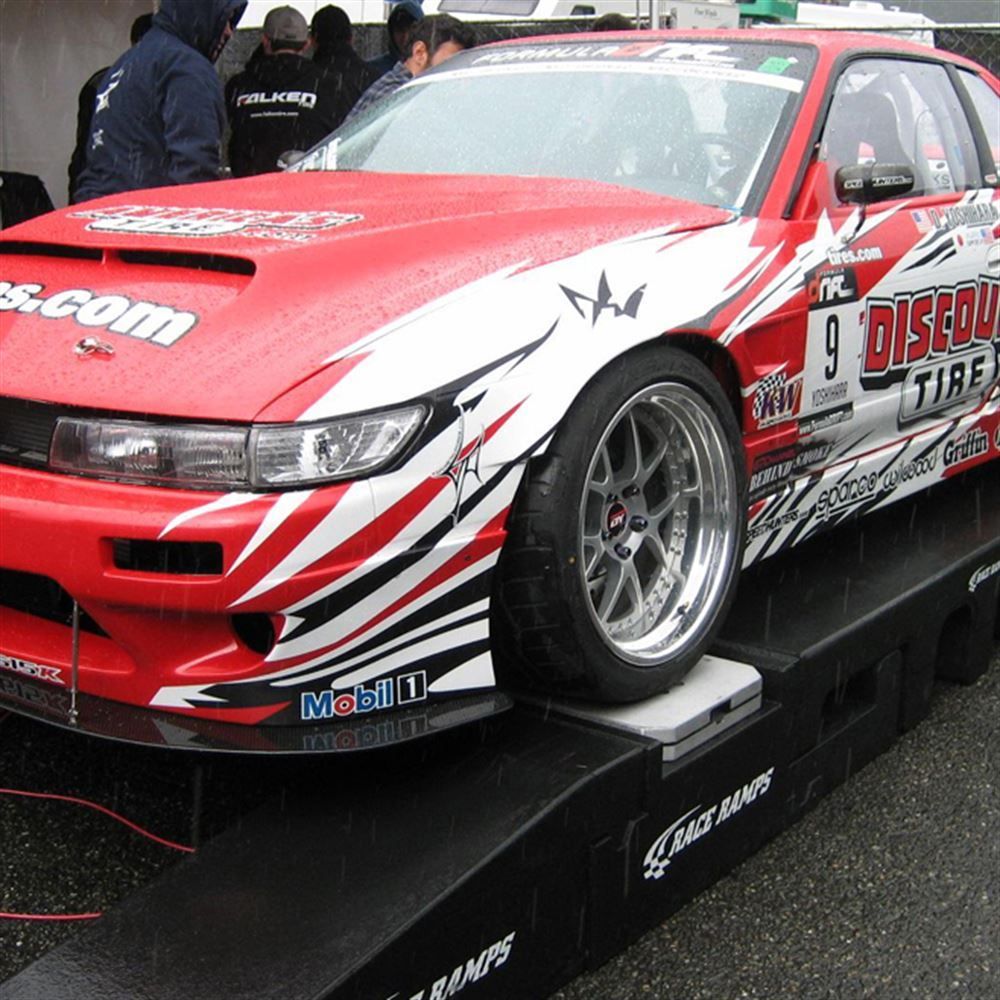

The multi-piece design is easy to assemble with pieces that weigh no more than 40 pounds; and once a car is positioned on top, the center pieces and inclines can be removed for even better accessibility under the car and around the perimeter. The ramp platform provides 14 inches of lift and can accommodate a wheel base of 90 to 115 inches and tires up to 14 inches wide. Each incline has a 10-degree approach angle, and the racer model comes with 15 inch cutouts on top for use with scales. The entire ramp system can support up to 6,000 pounds. An additional set of inclines is available if you wish to have ramps at both ends.

These ramp platforms are manufactured using an exclusive, patented process. They are constructed of 100% solid, high-density foam with a rugged anti-slip coating that results in a lightweight ramp solution that is strong, yet durable. They won’t slide on any surface, including garage and workshop floors.

  • Lift vehicle 14" for easy maintenance and spectacular display
  • 90" to 115" adjustable wheelbase; 15" cutouts make ramps easier to move
  • Modular design is easy to transport and store
Usage Guidelines
Please ensure that your ramp is damage-free before use. Never use two ramps on the same side of the vehicle. Use on a flat, level surface and ensure that the ramp makes full contact with the ground. Check that your steering wheel is straight and drive up at a slow, steady pace.

We stand by our Products! All Race Ramps purchases are backed by a 1 year warranty and are guaranteed to be free of defects at time of purchase.

Instruction Manual Freight Shipping Info
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Calculator
Make sure you can sail right up your service ramps!

Use the calculator below to determine your vehicle's maximum angle of approach. Then shop for any Race Ramps with an angle equal to or less than your result.

To determine the best angle of approach for your vehicle, we have devised the “yardstick test” below. If you do not have a yardstick, carefully measure out 36" with a tape measure or other straight, rigid object.

You may need two sets of hands to get an accurate measurement.

YARDSTICK TEST
yardstick test steps mobile
yardstick test step1
1

Place a 36" yardstick or tape measure at the base of your front wheel.

yardstick test step2
2

Raise up the yardstick or tape measure until it hits the underside of your car (the spoiler/splitter/air dam).

yardstick test step3
3

Measure vertically from the ground to the end of the yardstick or 36" point on the tape measure.

Record your height here.
