5" H Lip Nose Rack Ramp - 8.6 Degree Approach Angle
Key Features:
- Both 40" ramps have a 8.6 degree angle of approach
- These ramps will never rust, transfer heat or cold, and won't skid or scuff your floors

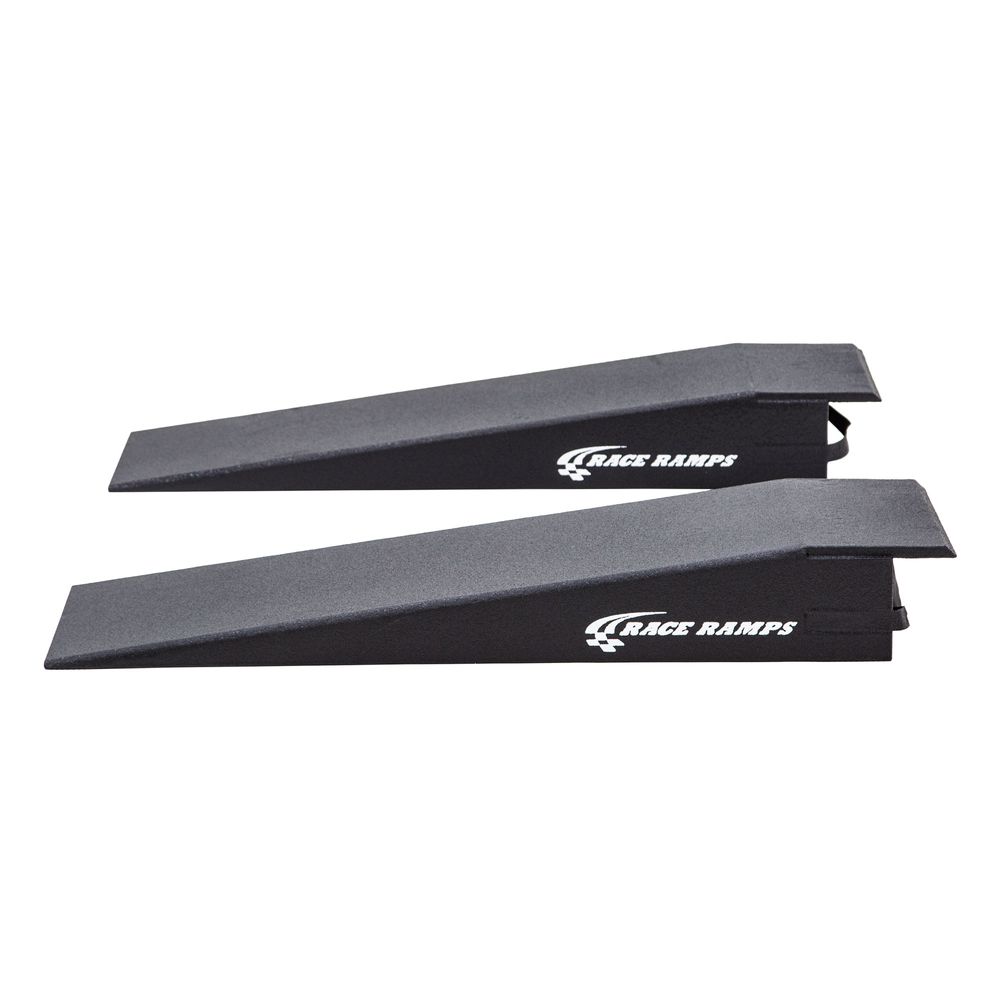

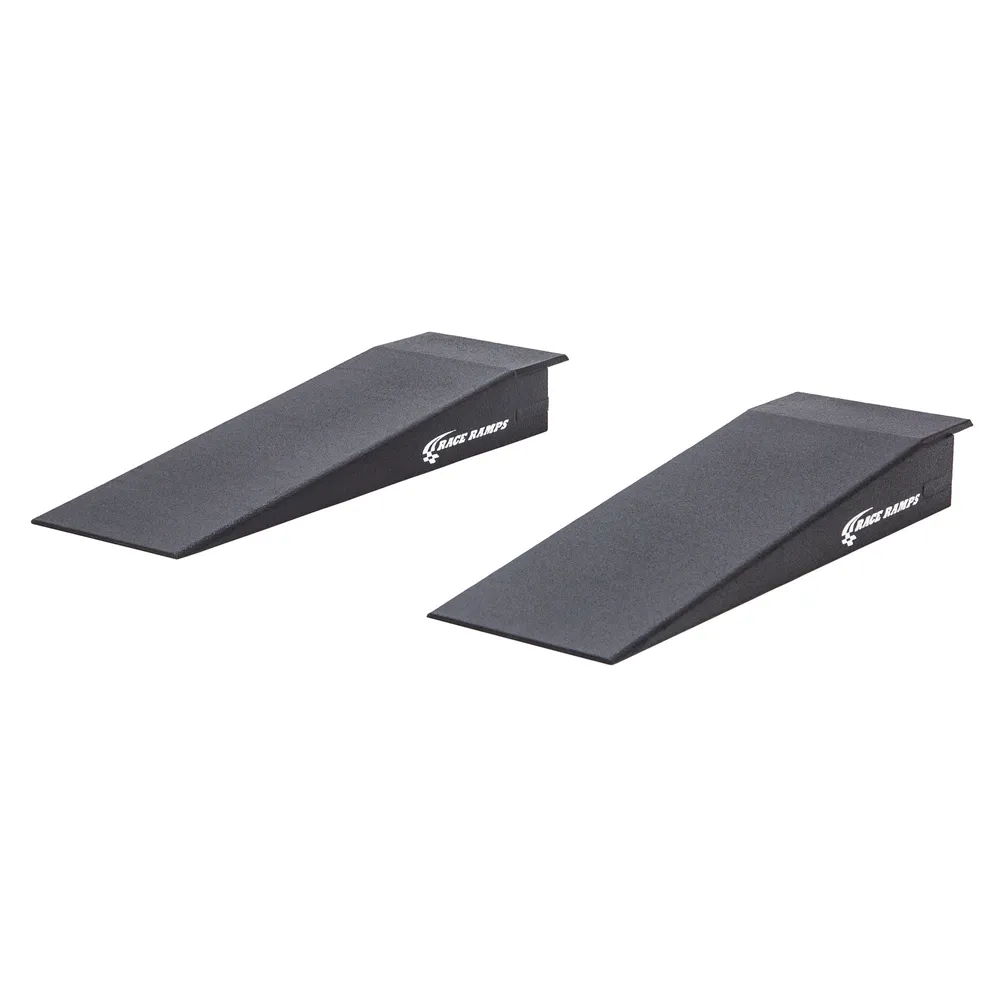

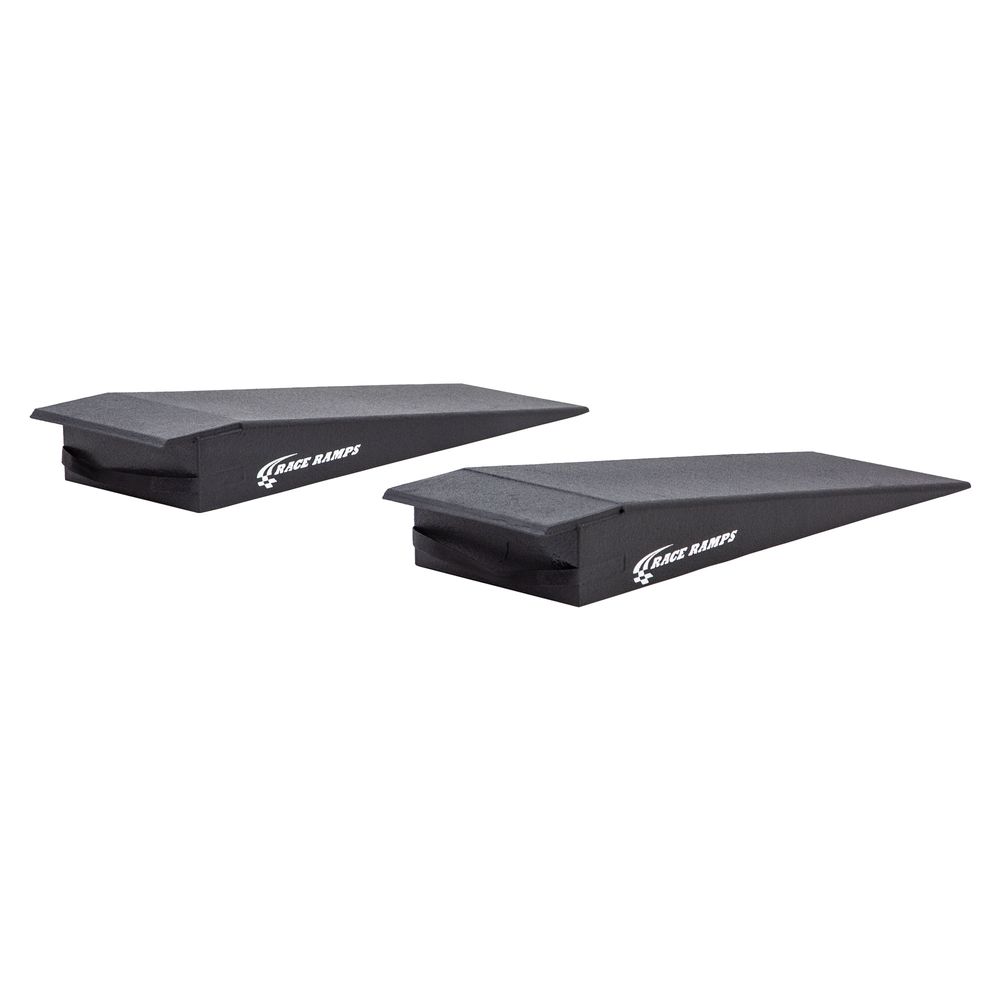

- Set of two

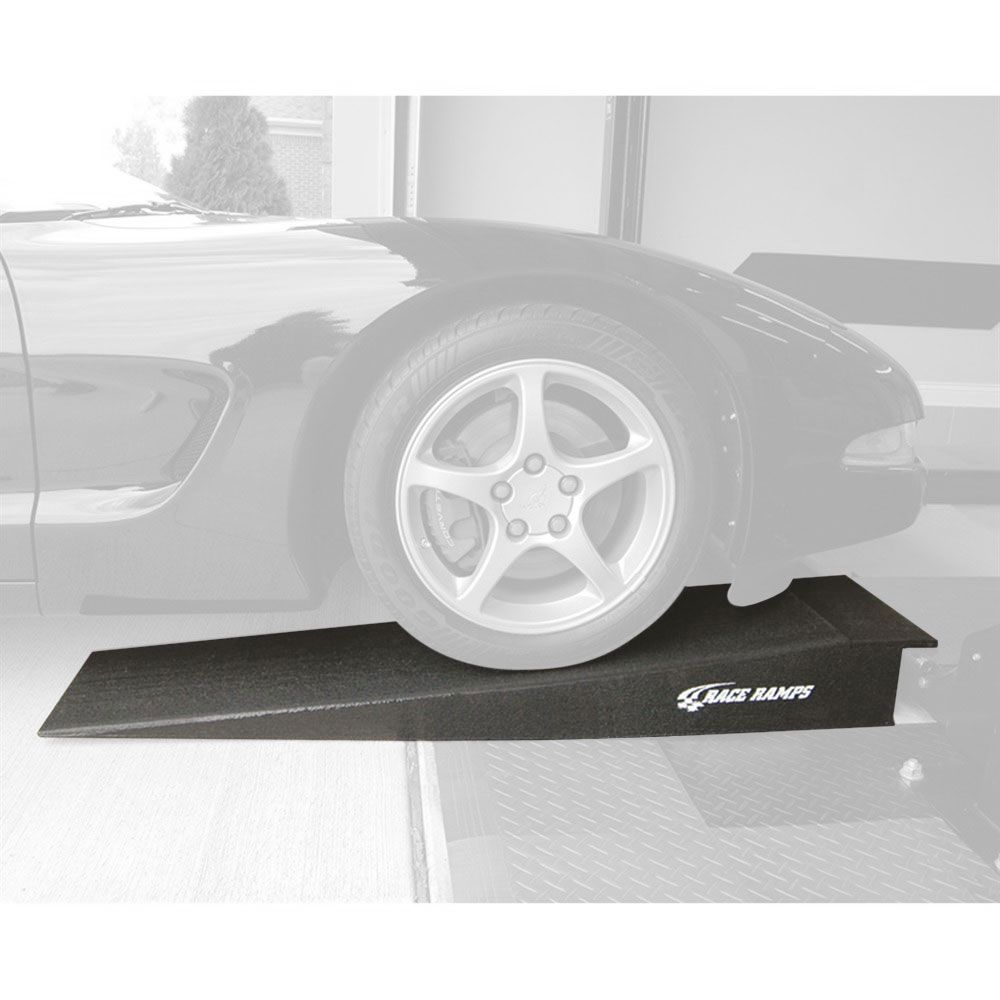

Avoid the struggle of dragging heavy steel ramps into position to help your front end clear your lift or platform! Instead, reach for a lightweight set of our 40-inch long lip-nose Rack Ramps.

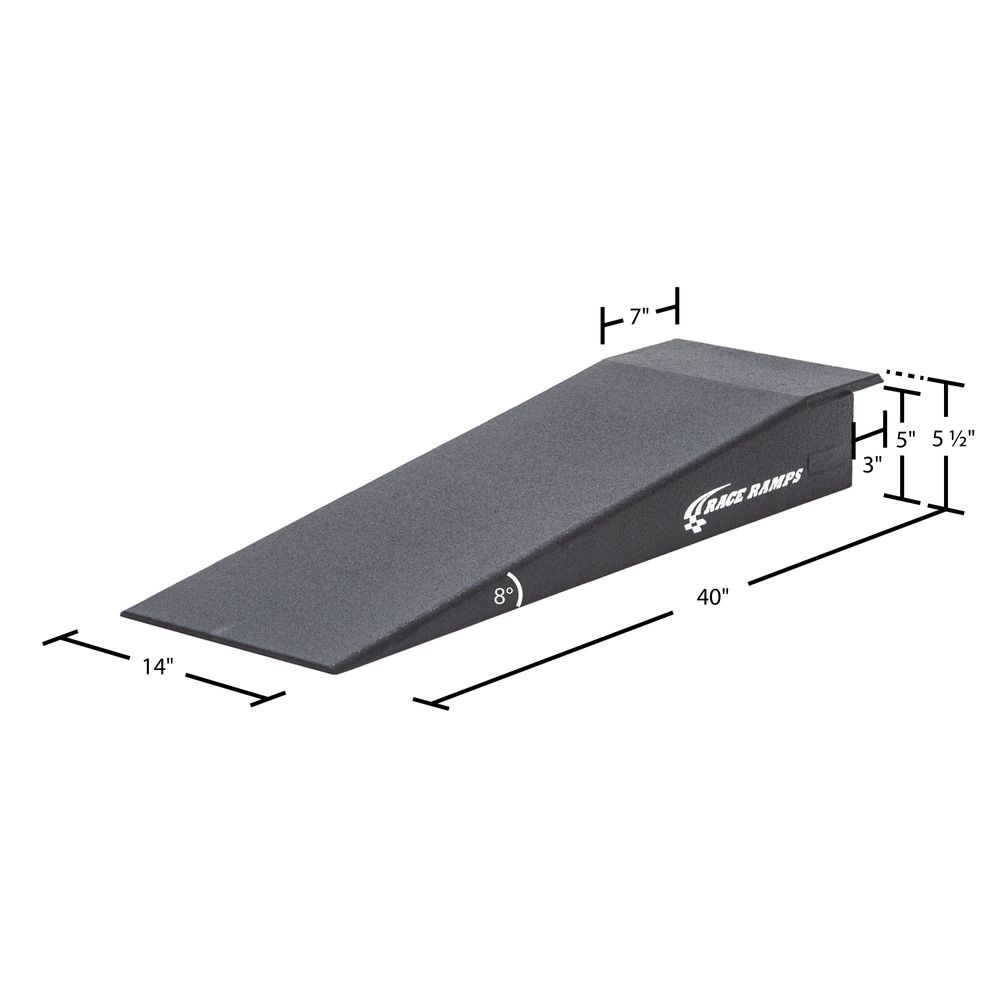

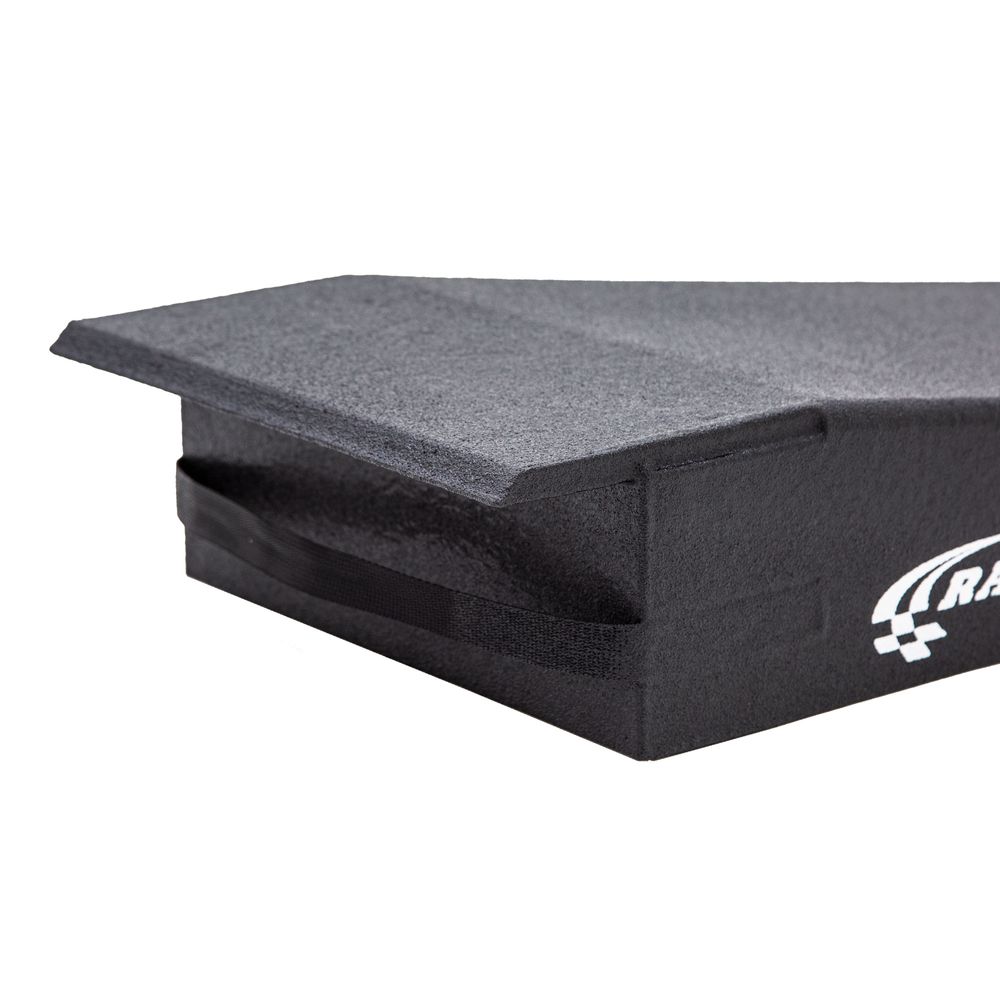

They have an 8.6-degree approach angle and come with a 3-inch lip bridge. The 14-inch width works with tires up to 12 inches wide. Each rack ramp weighs 9 pounds, and can support up to 1,500 pounds for a total vehicle weight capacity of 6,000 pounds. From the ground to the underside of the ramp lip measures 5 inches, and the ground to the top of the ramp lip measures 5.5 inches.
These ramps are manufactured using an exclusive, patented process. They are constructed of 100% solid, high-density foam with a rugged anti-slip coating that results in a lightweight ramp solution that is strong, yet durable.
- Both 40" ramps have a 8.6 degree angle of approach
- These ramps will never rust, transfer heat or cold, and won't skid or scuff your floors
- Set of two
Use the calculator below to determine your vehicle's maximum angle of approach. Then shop for any Race Ramps with an angle equal to or less than your result.
To determine the best angle of approach for your vehicle, we have devised the “yardstick test” below. If you do not have a yardstick, carefully measure out 36" with a tape measure or other straight, rigid object.
You may need two sets of hands to get an accurate measurement.


Place a 36" yardstick or tape measure at the base of your front wheel.

Raise up the yardstick or tape measure until it hits the underside of your car (the spoiler/splitter/air dam).

Measure vertically from the ground to the end of the yardstick or 36" point on the tape measure.
