42.3" Compact Tow Ramps - 5.2 Degree Approach
Key Features:
- Easily extend rollback for faster, safer loading of low-profile vehicles
- Decrease angle of approach to as little as 5.2 degrees
- Compact ramp design supports vehicles up to 10,000 lbs.
Tow like a pro with the 42.5-inch long Compact Single Piece HD Tow Ramp! You know that your customer loves his or her Corvette, Porsche, or other low-to-the-ground car, and you need to show them that it's safe in your hands too.

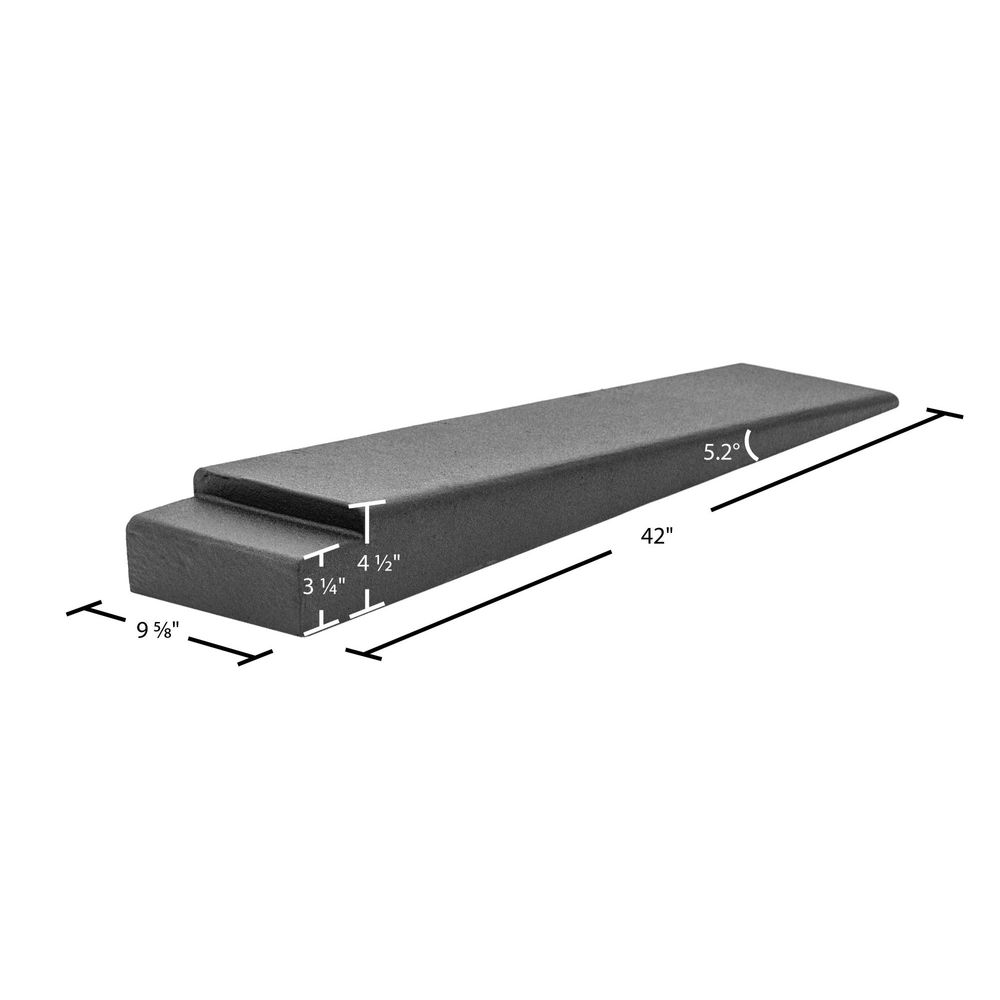

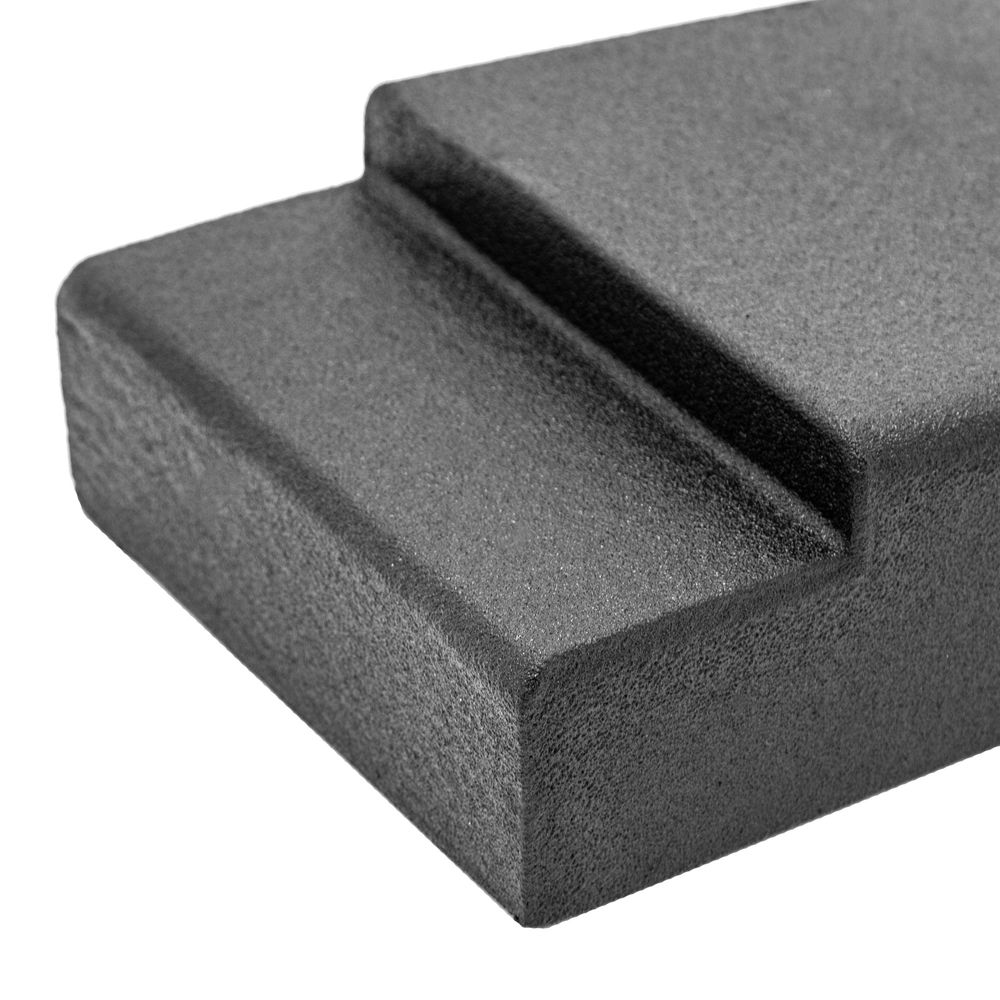

The 1 inch by 5 inch notch in this Tow Ramp enables you to simply fold the rollback down into the notches and drive on up (or hook up the winch) with no worries about your safety or the safety of the car. This compact ramp gives 4.5 inches of lift and has a 5.2-degree angle of approach. It is designed for tires up to 8 inches wide, and it can support up to 2,500 pounds for a total vehicle weight capacity of 10,000 pounds.
These ramps are constructed using an exclusive, patent process. They are 100% solid, high-density foam with a rugged anti-slip coating that results in a lightweight ramp solution that is strong yet durable. The ramp will not slide, scratch, or otherwise damage any floor type. The reinforced bottom allows the ramp to be used on gravel or other rough surfaces that you may encounter along the side of the road.
- Easily extend rollback for faster, safer loading of low-profile vehicles
- Decrease angle of approach to as little as 5.2 degrees
- Compact ramp design supports vehicles up to 10,000 lbs.
Use the calculator below to determine your vehicle's maximum angle of approach. Then shop for any Race Ramps with an angle equal to or less than your result.
To determine the best angle of approach for your vehicle, we have devised the “yardstick test” below. If you do not have a yardstick, carefully measure out 36" with a tape measure or other straight, rigid object.
You may need two sets of hands to get an accurate measurement.


Place a 36" yardstick or tape measure at the base of your front wheel.

Raise up the yardstick or tape measure until it hits the underside of your car (the spoiler/splitter/air dam).

Measure vertically from the ground to the end of the yardstick or 36" point on the tape measure.
